1.2738 Plastic mold steel

Model NO.: 1.2738
Delivery: FOB,CIF,CFR,EXW etc
Minimum order quantity: 20 tons
Supply Ability: 1500 tons / Month
Country of Origin: SHENZHEN
Stock Time: 10 Days

1.2738 Plastic mold steel is ideal for high quality plastic injection moulds. It is widely used for large-sized moulds, such as automotive parts, home appliances, and other plastic products.

Quantity:

Product Description
Basic Information

1.2738 Plastic Mold steel

Product Overview

1.2738 Plastic mold steel is a high-performance, pre-hardened plastic mould steel enriched with Nickel (Ni). Specifically designed for large-sized and deep-cavity moulds, it offers superior through-hardening properties compared to standard 1.2311 plastic mold steel. Supplied in a quenched and tempered condition (280-325 HB), 1.2738 Plastic Mold steel eliminates the need for further heat treatment, significantly reducing production risks and lead times. Its refined grain structure ensures outstanding polishability and excellent response to photo-etching/texturing.

1.1.2738 Plastic mold steel typical Chemical composition:

C=0.35-0.46,Si=0.2-0.4, Mn=1.3-1.6,Mo:0.15-0.25, Cr=1.8-2.2, Ni=0.9-1.2, P≦0.035, S≦0.005

2. 1.2738 Plastic mold steel delivery Condition

(1) Hot rolled ,Black / Milled surface
Hardened & tempering,hardness 30-36HRC or 33-38HRC
With original edge/2 sides cutting by bandsaw/4 sides cut by bandsaw or according to clients special cutting requirements

Ultrasonic test according to SEP 1921-84 Gr3, Class C/c or D/d

(2) Hot Forged ,Black / Milled surface
Hardened & tempering hardness30-36HRC or 33-38HRC
2 ends cutting by bandsaw/4 sides cut by bandsaw or according to clients special cutting requirements

Ultrasonic test according to SEP 1921-84 Gr3 Class D/d

3.1.2738 Plastic mold steel Size specification

	Thickness range(mm)	Width range(mm)	Length range(mm)
Rolled big plate	20-120	2200	3000-5800
Rolled Flat bar	20-120	205-1500	2200
Forged Flat bar	105-300	610-1100	3000-5800
Forged Block	195-1100	1100-1800	2500-5800

We also can cut per your size requirements by bandsaw

4. 1.2738 Plastic mold steel available Shape:Steel plate/Flat bar/Round bar/Square bar etc

5. Delivery time:

---3-15 days for ready stock plate

---30-60days for new production

6. 1.2738 Plastic mold steel character
---Good mechanical property
---High quenching
---Make surface have equal hardness after deal with it
---Nice polishing
---Low roughness
---Normally, it should make the heat-treatment to harden condition before use
---It can be used directly after the mould machined
---Deal with surface induration when it necessary

7. 1.2738 Plastic mold steel Typical Applications

Large Injection Molds: Automotive bumpers, dashboards, and interior trims.
Home Appliances: Television frames, air conditioner housings, and washing machine tubs.
High-Gloss Products: Electronic housings and consumer goods requiring a mirror finish.
Die Frames: Heavy-duty frames for pressure casting and plastic molding.

------------------------------------------------------------------------------------------------------------------------------

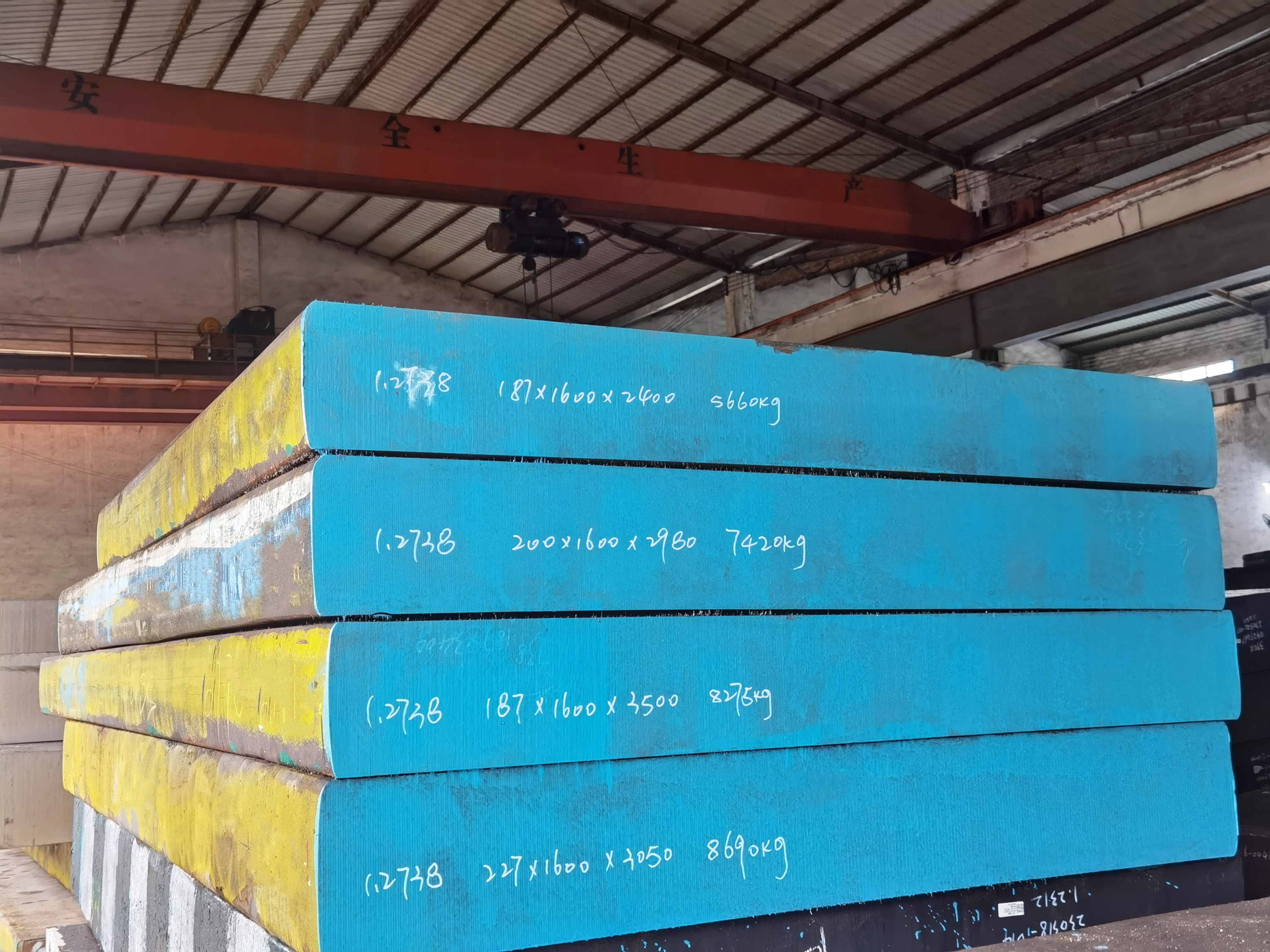

Our 1.2738 Plastic Mold Steel Plate

--------------------------------------------------------------------------------------------------------------------------------------------------------

Special Use：Mold Steel
Technique：Hot Rolled
Application：This kind of steel is apply to the mould of high polishing and high demand and the plastic of PA, POM, PS, PE, PP, ABS.
Model Number：P20+NI PLASTIC MOULD STEEL
Brand Name：YUFANG
Place of Origin：DONGGUAN,CHINA
Length：2000-5800MM
Width：105-2200MM
Thickness：16-800MM
Standard：GB; DIN; AISI; JIS
Grade：P20+NI
