1.2311 Plastic Mold Steel
Product Overview
1.2311 Plastic Mold Steel is a high-quality pre-hardened plastic mould steel, typically supplied in the quenched and tempered condition (280-325 HB). It is renowned for its excellent machinability and uniform hardness even in large sections. As a versatile P20 grade, it provides superior surface finish and dimensional stability, making it the industry standard for medium-sized plastic injection molds.
1. 1.2311 Plastic Mold Steel Chemical composition:
C | Si | Mn | Cr | Mo | P | S | |
P20 | 0.28~0.40 | 0.20~0.80 | 0.60~1.00 | 1.40~2.00 | 0.30~0.55 | <=0.030 | <=0.030 |
1.2311 | 0.35~0.45 | <=0.60 | <=0.80 | 1.80~2.10 | 0.15~0.25 | <=0.030 | <=0.030 |
2. 1.2311 Plastic Mold Steel Delivery condition:
(1)Hot rolled,black surface or milled surface
as original edge/2 sides bandsaw cutting/4 sides bandsaw cutting or according to clients special cutting requirements
Hardness:28-34HRC or 30-36HRC
(2)Hot Forged,black surface or milled surface
2 sides bandsaw cutting/4 sides bandsaw cutting or according to clients special cutting requirements
Hardness:28-36HRC
3. 1.2311 Plastic Mold Steel Size specification:
| Thickness range(mm) | Width range(mm) | Length range(mm) | |
| Rolled big plate | 10-250 | 2000-2300 | 3000-5800 |
| Rolled Flat bar | 10-250 | 205-1500 | 2000-2300 |
| Forged Block | 195-1100 | 1100-1800 | 2500-5800 |
4. 1.2311 Plastic Mold Steel Delivery time:
For ready Stock Material:3-15 days after advanced payment or confirm the original L/C.
For Future Material:25-60days after advanced payment or confirm the original L/C.
5. 1.2311 Plastic Mold Steel Material character:
a)Good mechanical property
b)High quenching
c)Make surface have equal hardness after deal with it
d)Nice polishing mini
e)Low roughness on the surface
f)Deal with induration in advance
g)1.2311 plastic mold steel could be used directly after the mould machined
h)Deal with surface induration when it necessary
6. 1.2311 Plastic Mold Steel Typical Applications:
Injection Molds: Ideal for medium-sized plastic molds, such as toy components, household appliances, and automotive parts (bumpers, dashboards).
Die Frames: High-strength frames for pressure casting and injection molding.
Extrusion Dies: Reliable performance for thermoplastic extrusion tools.
Bending Tools: Durable press-brake dies and tool holders.
-------------------------------------------------------------------------------------------------------------------------------------
YUFANG Main Steel List:
Plastic Mold steel: P20/1.2311,1.2312,1.2738/718H/P20+Ni, NAK80, P40,XPM
Hot work tool steel: 1.2344, SKD61, H13, H11, 8407,1.2714
Cold work tool steel: 1.2379,D2,SKD11, D3, 1.2080, Cr12Mov, O1
Stainless Steel:1.2083/4Cr13/SUS420,1.2085,1.2316
Alloy steel : 4140/42Crmo/SCM440/1.7225, 20CR, 40Cr, 35CrMo,SCM420
Carbon steel : S45C/SAE1045/C45, S50C/SAE1045/C50, S55C+CR
High Speed Steel:M2,M42,M35
----------------------------------------------------------------------------------------------------------------------------------------------

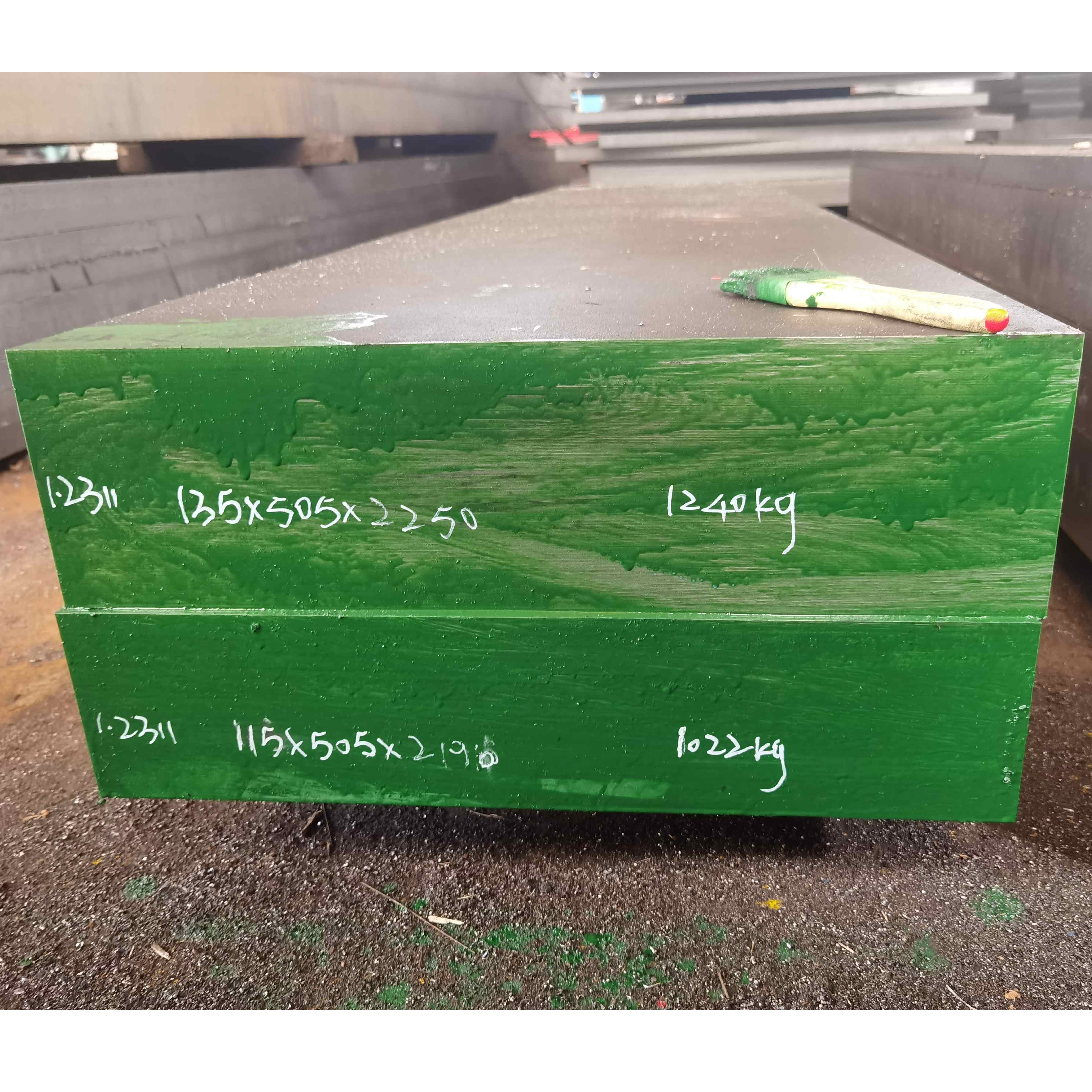

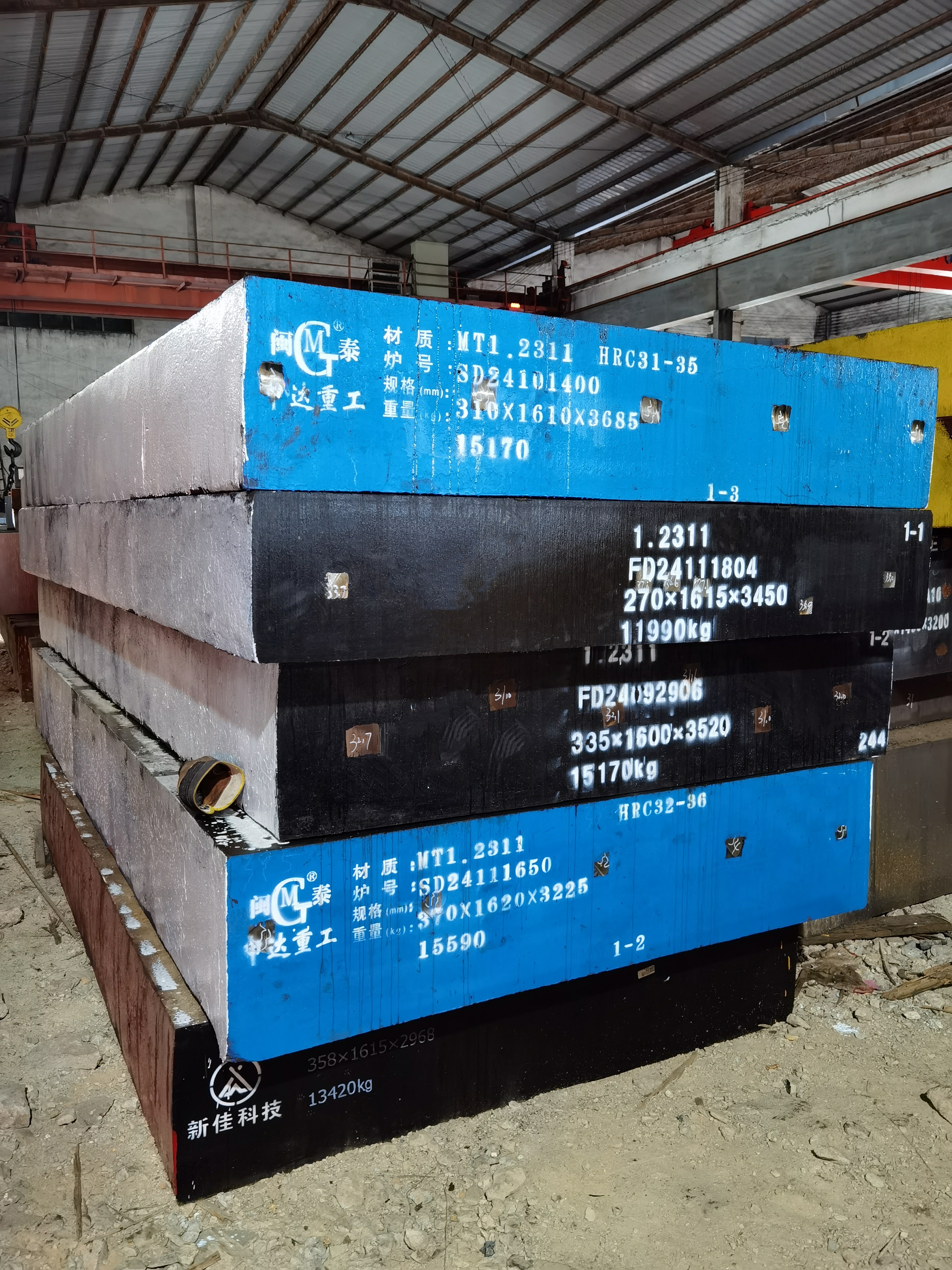

Yufang Steel 1.2311 Plastic Mold Steel Stock
