P40 Plastic Mould Steel

P40 Plastic Mould Steel

Product Overview

P40 Plastic Mould Steel is a high-performance, pre-hardened chrome-moly alloy steel specifically engineered for the most demanding plastic injection molding applications. Delivered in a quenched and tempered condition (typically 38-42 HRC), P40 Plastic Mould Steel offers higher hardness and superior wear resistance compared to standard P20 Plastic Mould Steel grades. It is designed to provide excellent structural integrity and surface finish for medium-to-large moulds, ensuring a significantly longer production life and reduced maintenance costs for high-volume manufacturing.

1. P40 Plastic Mould Steel Chemical composition:

C=0.35-0.45,Si=0.20-0.40,Mn=0.60-0.90,Cr=0.80-1.10,Mo=0.15-0.25,Ni≤0.30,Cu≤0.25

2.P40 Plastic Mould Steel Delivery condition
Hot rolled
Black or Milled surface
Hardened & tempering hardness: 38~42HRC
Width origianl edge/2 sides cutting by bandsaw/4 sides cutting by bandsaw

3.P40 Plastic Mould Steel Size specification:
           Big plate
Thickness: 20~120MM
Width: 2200MM
Length: 3000~5800MM

          Flat bar
Thickness: 20~120MM
Width: 205-810MM
Length:3000~5800MM

And we can also provide the size as you required.

3.P40 Plastic Mould Steel Key Features:

• Enhanced Pre-Hardened State (38-42HRC): Higher initial hardness than P20, providing better resistance to cavity deformation and wear.

• Excellent Cleanliness: Produced via vacuum degassing (VD) to ensure a refined grain structure, perfect for high-gloss polishing.

• Superior Machinability: Despite its higher hardness, P40 maintains excellent cutting and milling properties for complex mould geometries.

• High Thermal Conductivity: Facilitates faster cooling cycles during the injection process, increasing production efficiency.

• Great Dimensional Stability: Minimal movement during machining, ensuring precision for tight-tolerance components.

4. P40 Plastic Mould Steel Typical Application:

• High-Volume Production Molds: Ideal for parts requiring hundreds of thousands of cycles.

• Precision Automotive Parts: Headlight housings, interior panels, and structural components.

• Electronic Enclosures: Mobile phone frames, laptop casings, and premium consumer electronics.

• Compression Molds: Suitable for thermosetting plastics and reinforced plastic materials.

5. Delivery time:   3-15 days for ready stock
                              20-60days for new production products

----------------------------------------------------------------------------------------------------------------------------------------------------

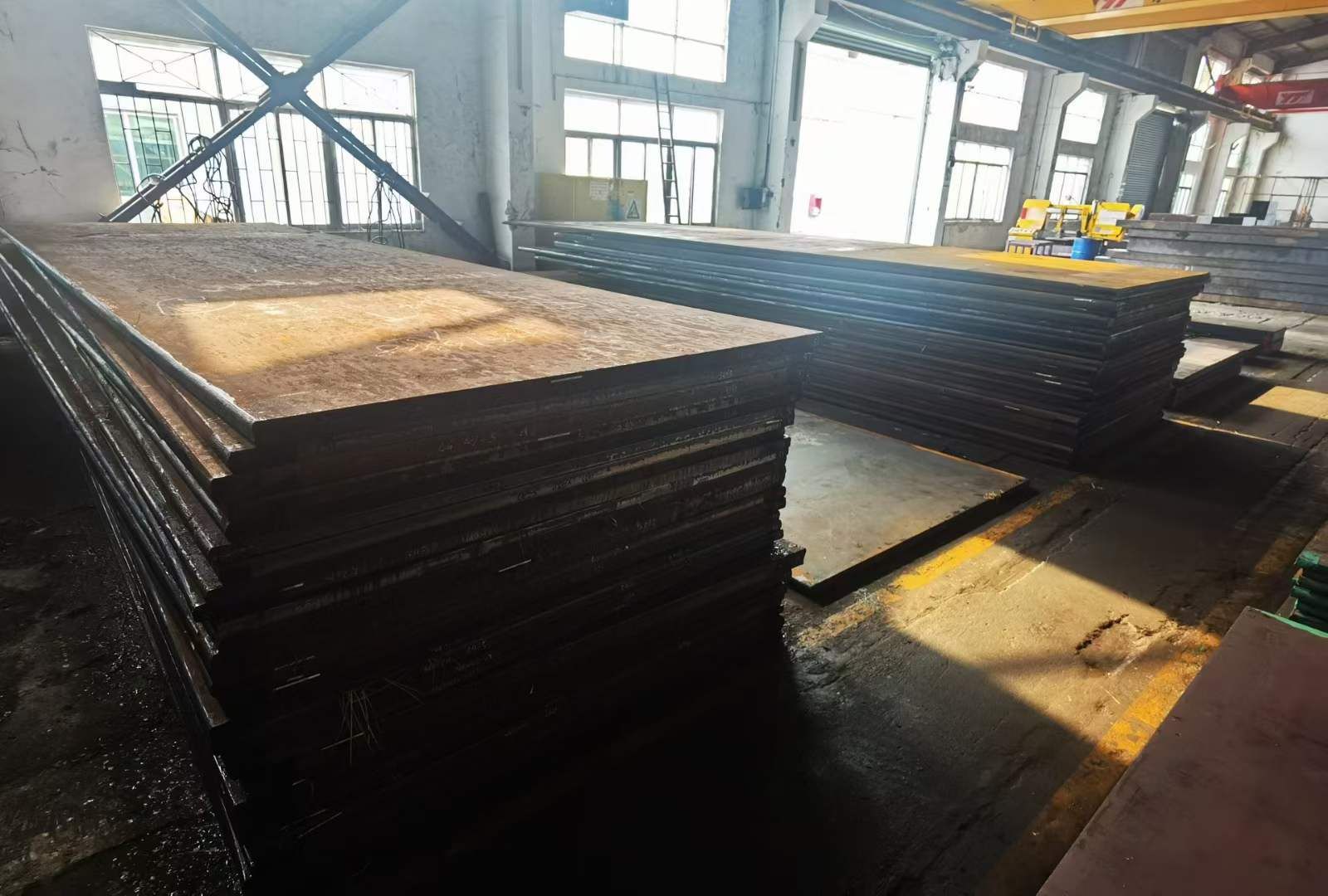

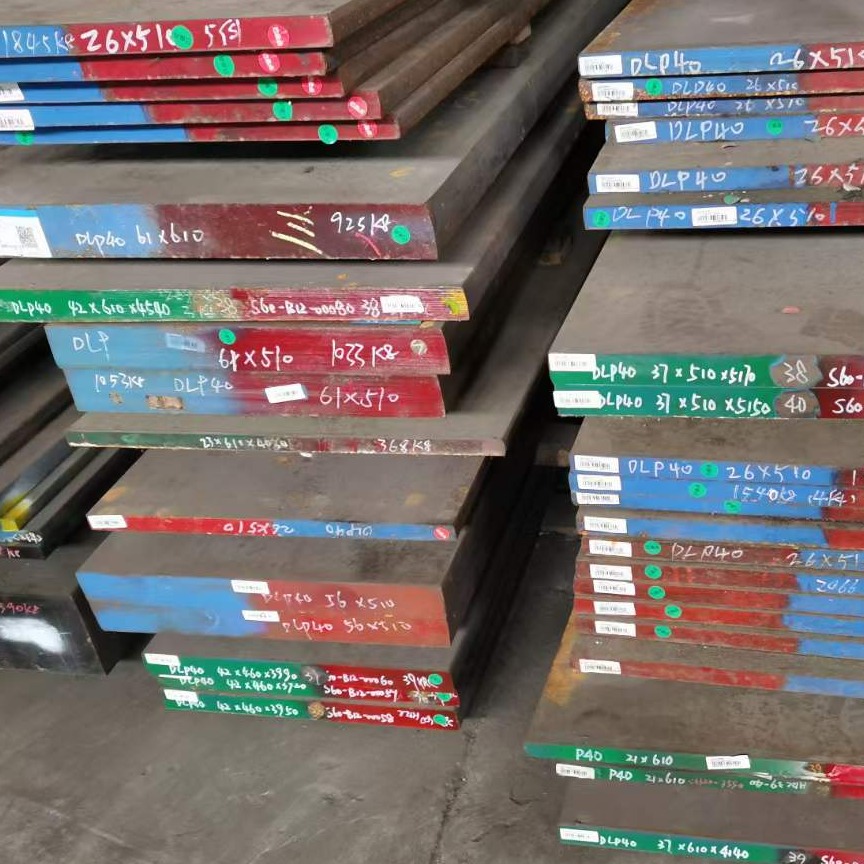

Yufang P40 Plastic Mould Steel Stock:

-----------------------------------------------------------------------------------------------------------------------------------------
