1.2738 Modified Plastic Mould Steel – XPM-Type

Model NO.: 1.2738 Modified Plastic Mould Steel – XPM-Type
Delivery: FOB.CIF.EXW etc
Minimum order quantity: 20 tons
Supply Ability: 3000 tons / Month
Country of Origin: Shenzhen China
Stock Time: 10 Days

Our 1.2738 modified plastic mould steel is a pre-hardened steel developed for large and medium-sized injection moulds, particularly applications requiring good hardness uniformity, polishability, machinability and dimensional stability.

The grade is based on the 1.2738 family and is commonly considered for applications where materials such as XPM are specified. It is manufactured in China and is not produced by Schmiedewerke Gröditz.

Quantity:

Product Description
Basic Information

1.2738 Modified Plastic Mould Steel – XPM-Type
Product Overview
1.2738 Modified Plastic Mould Steel – XPM-Type is a premium, chromium-manganese-nickel-molybdenum alloyed steel, specifically engineered for large and medium-sized plastic injection moulds. Delivered in a pre-hardened condition (38-42 HRC or 34-38 HRC depending on variant), 1.2738 Modified Plastic Mould Steel – XPM-Type offers a superior combination of high thermal conductivity, excellent machinability, and uniform through-hardening properties. It is the industry’s top choice for manufacturing high-quality automotive components, large household appliances, and complex electronic housings where surface perfection and dimensional stability are paramount.

1.1.2738 Modified Plastic Mould Steel – XPM-Type Typical Chemical composition:

C	Si	Mn	P	S	Cr	Ni	Mo
0.23-0.29	≤0.40	1.40-1.70	≤0.025	≤0.005	1.20-1.80	0.90-1.20	0.30-0.70

2.1.2738 Modified Plastic Mould Steel – XPM-Type Delivery condition:
Hot rolled or Forged
Black surface or milled surface
As original edge/2 sides bandsaw cutting/4 sides bandsaw cutting
Hardness:: 37~43HRC

3.1.2738 Modified Plastic Mould Steel – XPM-Type Size specification:

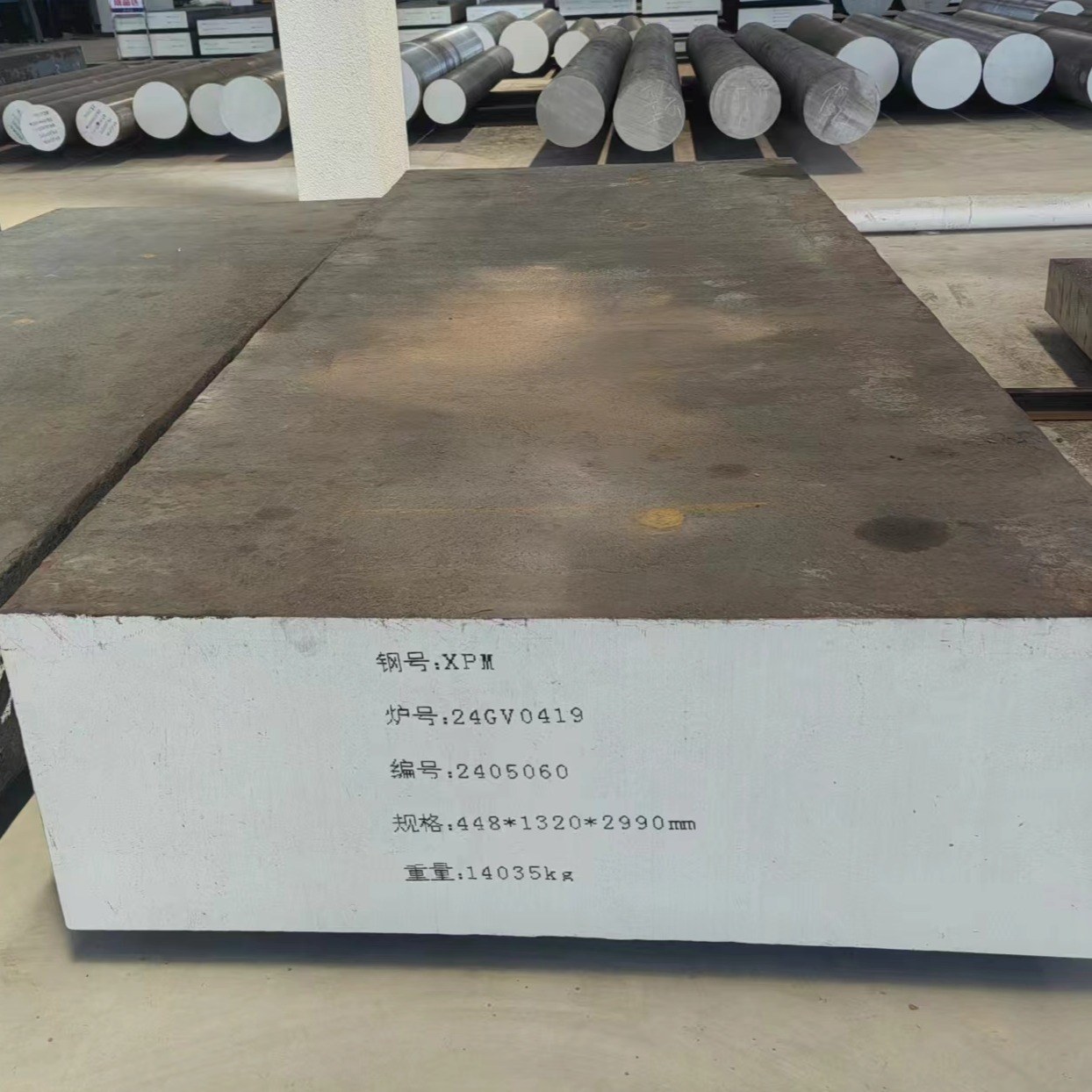

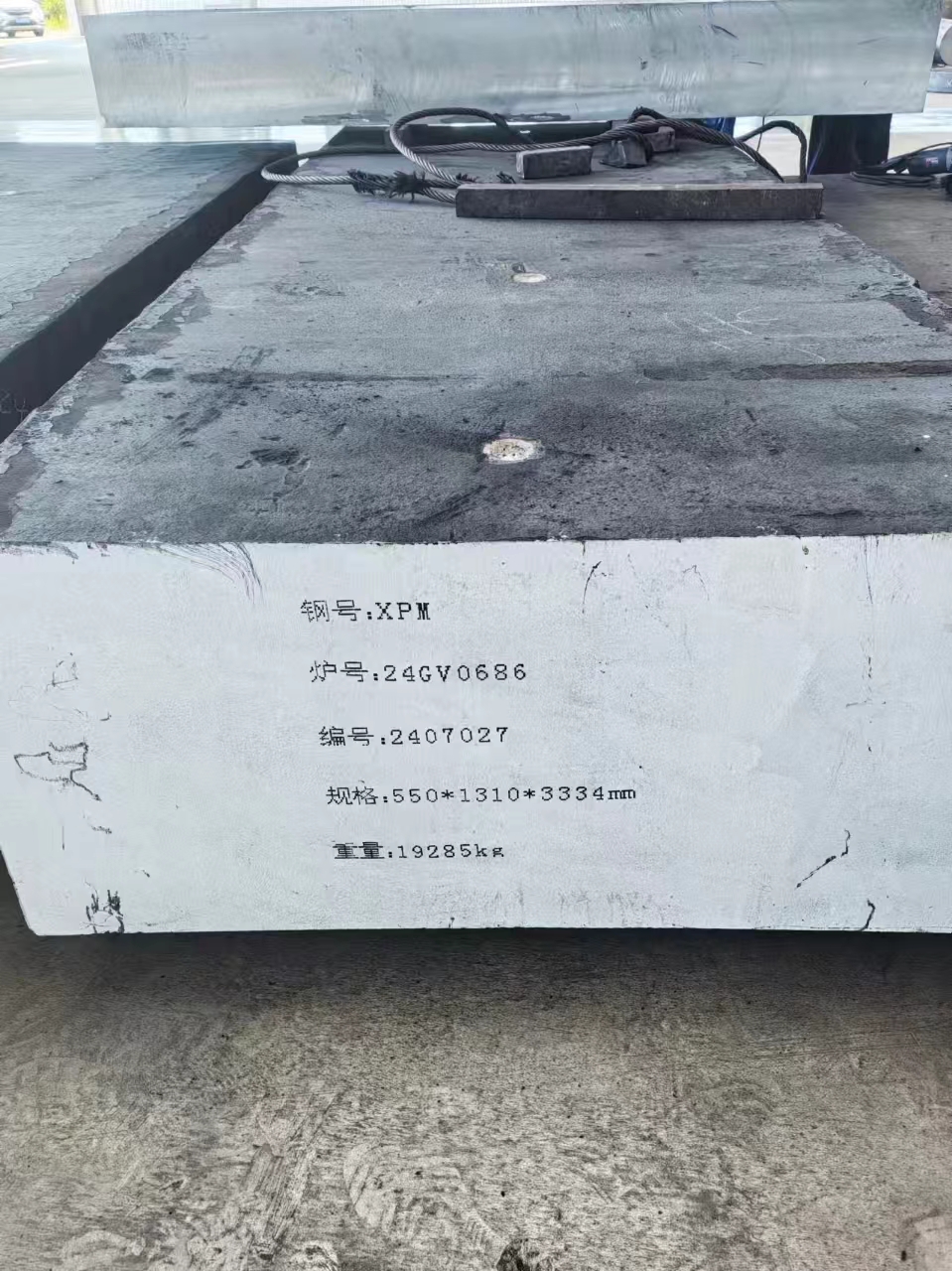

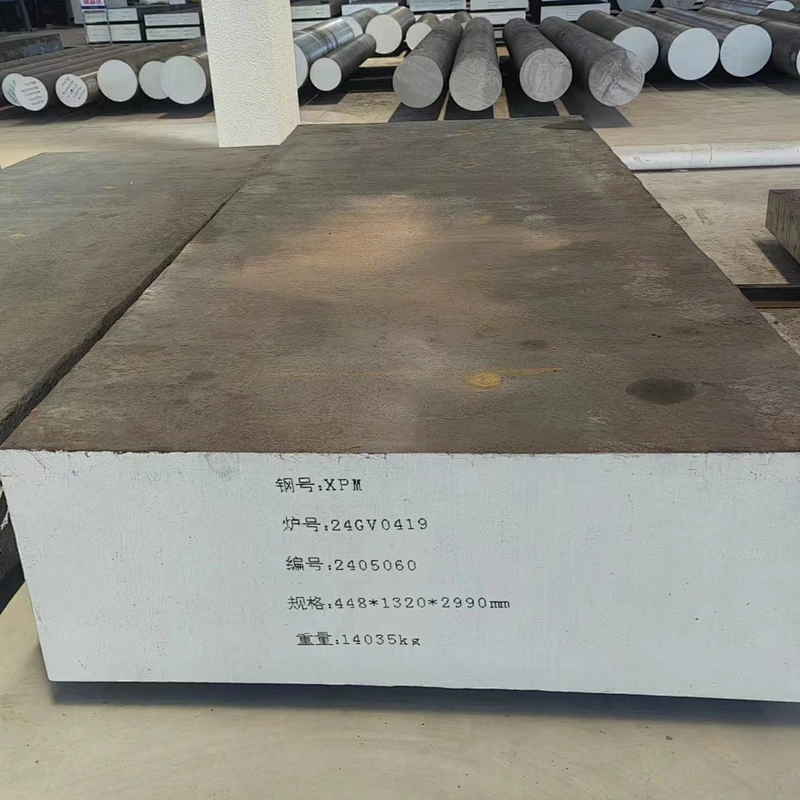

Hot forged Block
Thickness: 200~500MM
Width: 610-1500MM
Length: 2000~5800mm
Mill origin: Local forged mill

4. Technical Data: According to the standard Chemical Composition, Physical Properties and Mechanical Testing

5. Inspection:
1)Ultrasonic test according to SEP 1921-84 Gr3, Class D/d.
2)hardness inspection
3)size checking
4)chemical inspection

6. Delivery time: 3-10 days for ready stock
15-60days for new production products

7.1.2738 Modified Plastic Mould Steel – XPM-Type character:

---uniform hardness in cross-section

---high degree of polishability

---good chip removal

---high thermal conductivity

---hardened and temperable steel for plastic molds

---nitridable

---suitable for chrome plating

---XPM Plastic Mould Steel have better weldability if compared to 1.2738

---good toughness

8.1.2738 Modified Plastic Mould Steel – XPM-Type Typical Application:

Automotive Industry: Large bumper moulds, dashboards, door panels, and complex interior trims.
Home Appliances: High-gloss TV frames, refrigerator components, and washing machine panels.
High-End Consumer Electronics: Precision laptop casings and mobile phone internal structures.
Transparent Plastics: Optical parts and clear housings requiring impeccable polishability.

-------------------------------------------------------------------------------------------------------------------------------------------

1.2738 Modified Plastic Mould Steel – XPM-Type

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
