P20 Plastic Mold Steel
Product Overview
P20 Plastic Mold Steel is a versatile, high-quality pre-hardened plastic mould steel characterized by its excellent machinability and uniform hardness. Supplied in the quenched and tempered condition (typically 28-34 HRC), P20 plastic mold steel eliminates the risk of heat treatment distortion and cracking, significantly shortening the tool-making cycle. It is the industry standard for medium-sized injection moulds, die frames, and zinc die-casting tools where a balance of toughness and surface finish is required.
1. P20 Plastic Mold Steel Chemical composition:
C | Si | Mn | Cr | Mo | P | S | |
P20 | 0.28~0.40 | 0.20~0.80 | 0.60~1.00 | 1.40~2.00 | 0.30~0.55 | <=0.030 | <=0.030 |
1.2311 | 0.35~0.45 | <=0.60 | <=0.80 | 1.80~2.10 | 0.15~0.25 | <=0.030 | <=0.030 |
2. P20 Plastic Mold Steel Delivery condition:
(1)Hot rolled,black surface or milled surface
as original edge/2 sides bandsaw cutting/4 sides bandsaw cutting
Hardness:28-34HRC
(2)Hot Forged,black surface or milled surface
2 sides bandsaw cutting/4 sides bandsaw cutting
Hardness:28-35HRC
3. P20 Plastic Mold Steel Size specification:
| Thickness range(mm) | Width range(mm) | Length range(mm) | |
| Rolled big plate | 10-250 | 2000-2300 | 3000-5800 |
| Rolled Flat bar | 10-250 | 205-1500 | 2000-2300 |

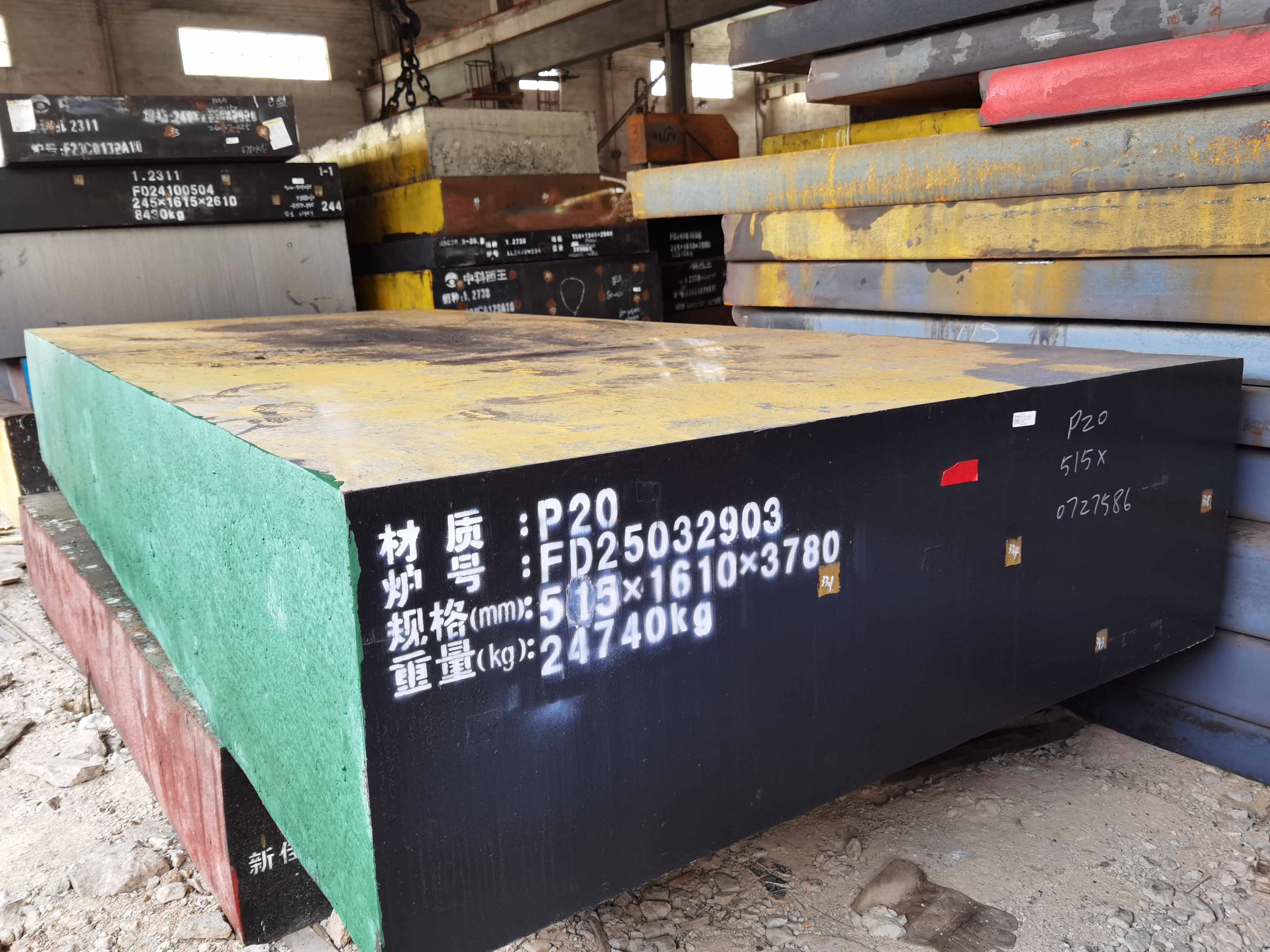

| Forged Block | 195-1100 | 1100-1800 | 2500-5800 |
4. P20 Plastic Mold Steel Delivery time:
For ready Stock Material:3-15 days after advanced payment or confirm the original L/C.
For Future Material:25-60days after advanced payment or confirm the original L/C.
5. P20 Plastic Mold Steel Key Features
Ready-to-Use (Pre-hardened): Delivered at 280-325 HB (28-34 HRC), allowing for immediate machining and stable dimensional accuracy.
Superior Machinability: High cutting speeds and reduced tool wear, making it cost-effective for complex cavity designs.
Excellent Surface Finish: Capable of achieving high-quality polishing and texturing (graining) for aesthetic plastic parts.
Uniform Hardness: Consistent mechanical properties through the entire thickness of the plate.
Good Weldability: Allows for easy mould modifications or repairs using standard welding techniques.
6. P20 Plastic Mold Steel Typical Applications:
Injection Moulds: Ideal for TV frames, household appliances, and automotive interior components.
Mould Bases: High-strength die holders and frames for pressure casting.
Extrusion Dies: Reliable performance for thermoplastic extrusion tools.
Bending Tools: Durable press-brake dies and tool holders for metal forming.
-------------------------------------------------------------------------------------------------------------------------------------
Why Source Our P20 Plastic Mold Steel?
100% Ultrasonic Testing: Verified to SEP 1921 Class D/d to guarantee a flaw-free internal structure.
Vacuum Degassing (VD): Ensures high purity and a clean microstructure for better polishing.
Precision Cutting & Milling: Available in custom-cut dimensions with fine-milled or ground surface finishes.
Full Traceability: Every shipment includes an official Mill Test Certificate (MTC) according to EN 10204 3.1.
----------------------------------------------------------------------------------------------------------------------------------------------
