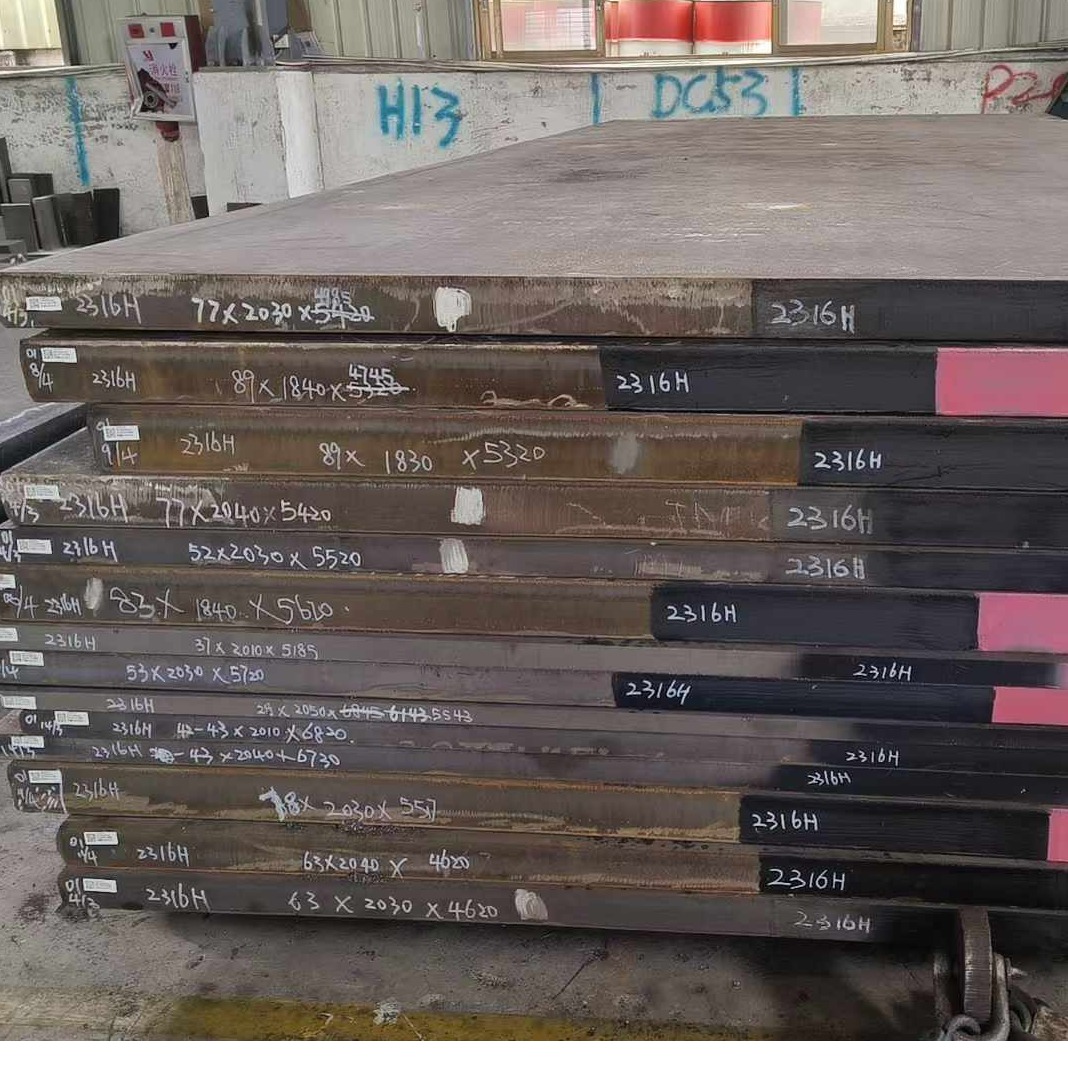

1.2316 Plastic Mould Steel
1)1.2316 Plastic Mould Steel Chemical Composition
C | Si | Mn | Cr | Mo | Ni | P | S |
0.33-0.43 | ≤1.0 | ≤1.0 | 15.0-17.0 | 1.0-1.3 | ≤1.0 | ≤0.03 | ≤0.03 |
2)1.2316 Plastic Mould Steel Delivery Condition:
Hot rolled or forged,QT/Pre-hardenedor annealed
Black Surface or Milled/machined surface
Hardness(QT):28-36HRC
Hardness(ANN):HB≤229
3)Regular Supplying dimension
Steel plate:20-100X1800-2300X3000-5800mm
Flat bar:20-120X310-810X3000-5800mm
Forged block:110-500X610-910X2000-5800mm
4)1.2316 Plastic Mould Steel Material character:
----Excellent corrosion resistance
----Excellent wear resistance and toughness
---Good thermal and fatigue resistance
---Material with uniform hardness, superior polishing performance
5)1.2316 Plastic Mould Steel Application:
Especially suitable for thermoplastic corrosive plastics, suitable for transparent, mirror products and molds
6)1.2316 Plastic Mould Steel major producer:
TISCO etc Rolled mill,and the forged block are from mature forged mill in local China.
YUFANG MAIN STEEL LIST:
(1)Plastic Mold steel: P20/1.2311, 1.2312, 1.2738/718H/P20+Ni, NAK80, P40,XPM.
(2)Hot work tool steel: 1.2344, SKD61, H13,1.2343, H11, FDAC, 8407
(3)Cold work tool steel: D2,1.2379,SKD11,Cr12mov, D3, 1.2080, O1
(4)Stainless Steel:1.2083/4CR13/SUS420,1.2085,1.2316,440C
(5)Alloy steel: 4140/42CrMo/SCM440/1.7225, 20Cr, 40Cr, 35CrMo,SCM420
(6)Carbon steel: S45C/SAE1045/C45, S50C/SAE1045/C50, S55C+Cr
