NAK80 Plastic Mould Steel

NAK80 Plastic Mould Steel

Product Overview

NAK80 Plastic Mould Steel is a premium, precipitation-hardened plastic mould steel, renowned worldwide for its exceptional mirror-polishing capabilities and superior electrical discharge machining (EDM) performance. Delivered in a pre-hardened state (37-43 HRC), NAK80 Plastic Mould Steel eliminates the need for further heat treatment, ensuring remarkable dimensional stability. Its unique metallurgical structure provides a high-quality surface finish and uniform hardness throughout the entire block, making it the gold standard for high-precision, transparent, and high-gloss plastic products.

1. NAK80 Plastic Mould Steel Typical Chemical composition:

C=0.10-0.15,Si=0.15-1.00,Mn=1.00-2.00,Cr=1.00-2.00,Mo=1.00-1.50,Ni=2.00-3.50,Cu=0.70-1.50

2. NAK80 Plastic Mould Steel Delivery Condition:

Hot rolled,Black surface/Milled surface,QT,hardness: 38~42HRC

Hot Forged,Black surface/Milled surface,QT,hardness: 38~42HRC

3. NAK80 Plastic Mould Steel Size specification:

        Big Plate
Thickness: 20~200MM
Width: 1800~2300MM
Length: 2000~5800MM

       Flat Bar

Thickness: 20~200MM
Width: 1800~2300MM
Length: 2000~5800MM
And we can also provide the size as you required.

4. Inspection: Ultrasonic test according to SEP 1921-84 Gr3, Class C/c or D/d

5. Delivery time:
      3-15 days for ready stock plate
     15-60days for new production products

6. NAK80 Plastic Mould Steel Material character:
  ---Good mechanical property after the heat-treatment
  ---High hardenability
  ---heat treatment process is very simple, and don’t have shape change
  ---Good mirror processing performance
  ---Good nitriding performance and electrical processing performance
  ---Welding performance and pattern etching performance, etc

7. NAK80 Plastic Mould Steel Typical Application:

• Optical Components: Lenses, light guides, and transparent covers for automotive and electronics.

• High-Gloss Consumer Goods: Mobile phone housings, cosmetic packaging, and high-end appliances.

• Precision Medical Devices: Clean-room grade moulds requiring impeccable surface integrity.

• Electronic Connectors: Complex, thin-walled parts requiring high-precision EDM.

• --------------------------------------------------------------------------------------------------------------------------------------------------------------------

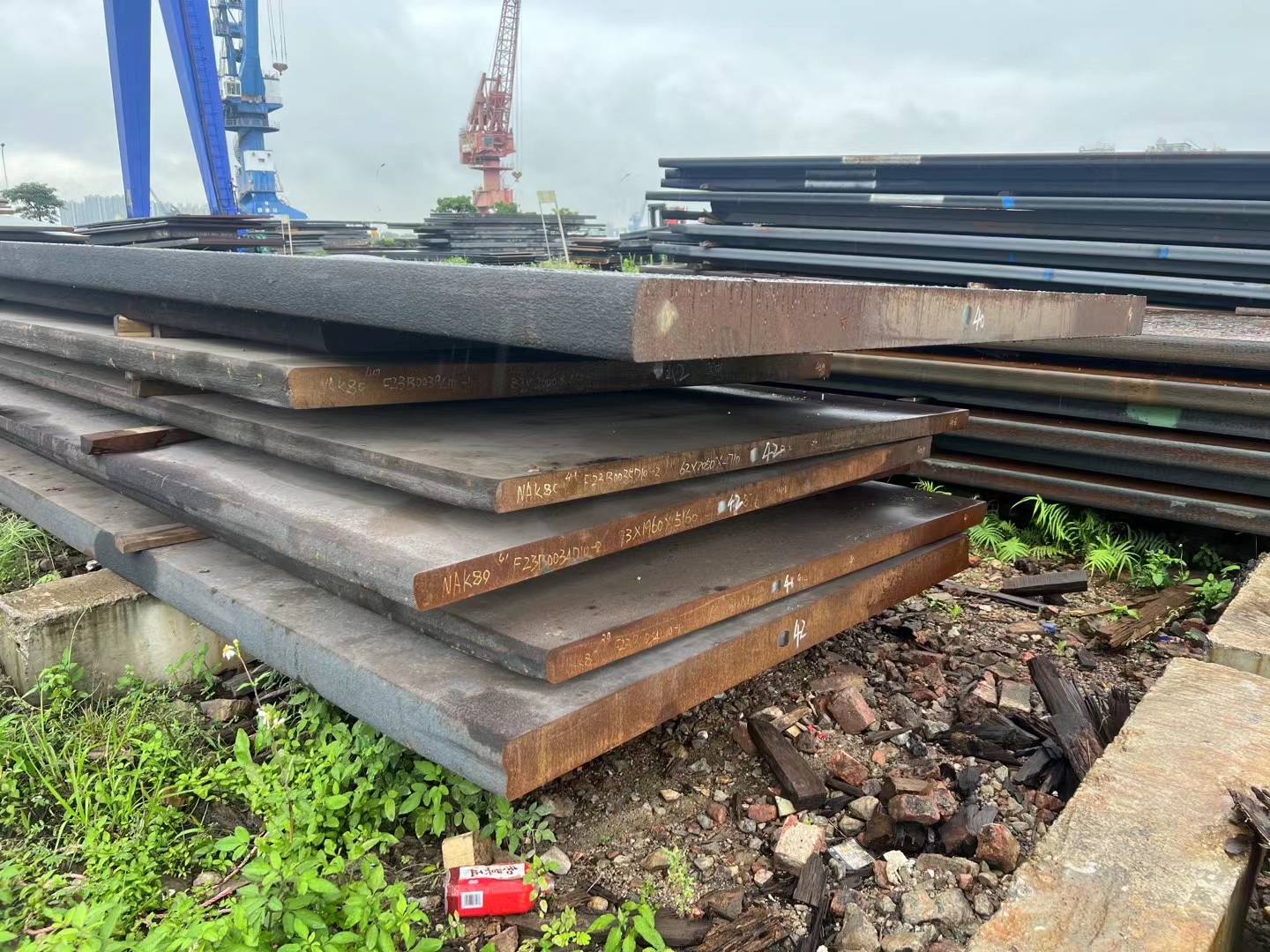

Yufang Steel NAK80 Plastic Mould Steel Stock:

---------------------------------------------------------------------------------------------------------------------------------------
