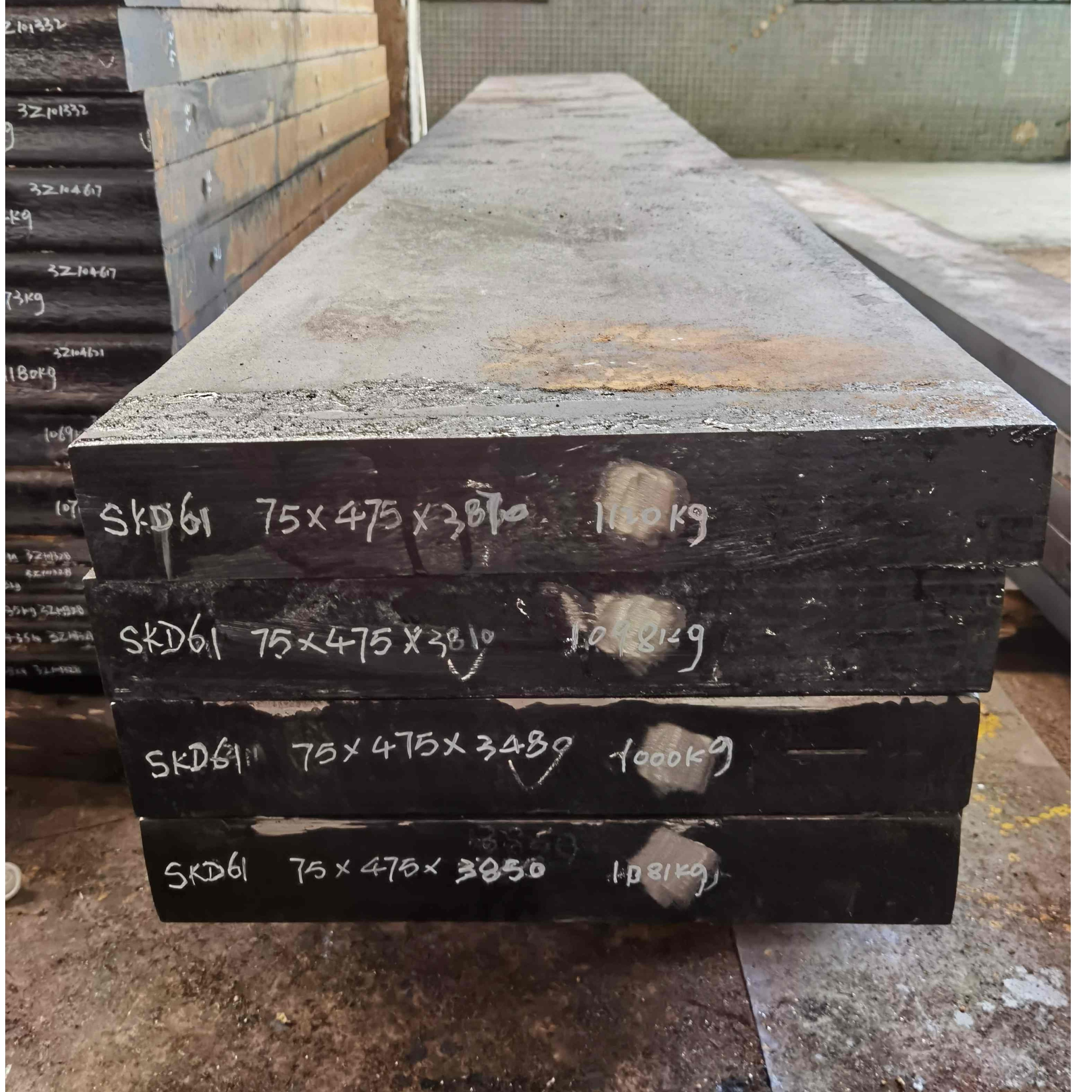

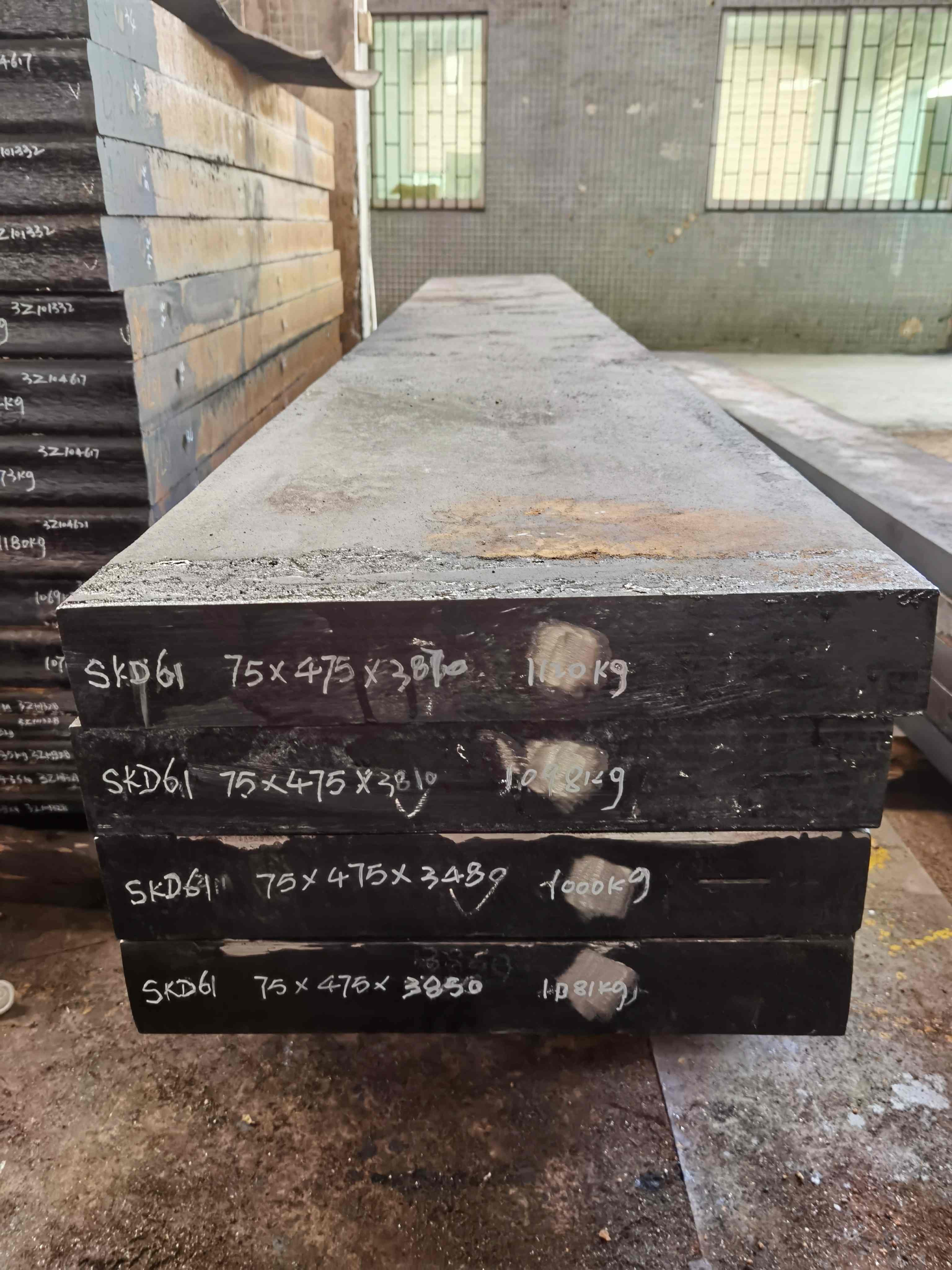

SKD61 Tool Steel bar
Product Overview
SKD61 is a premium hot-work tool steel characterized by its excellent combination of high-temperature strength, toughness, and thermal fatigue resistance. Designed to withstand rapid heating and cooling cycles, SKD61 maintains stable mechanical properties even at elevated temperatures. It is the industry standard for high-pressure die casting and hot extrusion tools, offering a long service life and exceptional resistance to thermal cracking (heat checking).
1. SKD61 Tool Steel bar Chemical composition:
Steel grade | Standard | C | Si | Mn | Cr | Mo | V |
SKD61 | JIS | 0.35~0.42 | 0.80~1.20 | 0.20-0.50 | 4.50~5.50 | 1.00~1.50 | 0.80~1.20 |
2.SKD61 Tool Steel bar Delivery condition:
Hot rolled/Forged,Black/Milled surface.Annealed.
Hardness: HBS<=229
3.SKD61 Tool Steel bar Size specification
Thickness: 20~500MM
Width: 205~810MM
Length: 2000~5800MM
Round bar size: 60~350MM
And we can also provide the size you required.
4.Key Features
High Thermal Fatigue Resistance: Exceptional resistance to heat checking during rapid temperature fluctuations.
Excellent Toughness: High impact strength prevents cracking and catastrophic failure under heavy loads.
Superior Hardenability: Achieves uniform hardness throughout the core, even in large diameter bars.
Minimal Distortion: Highly stable during heat treatment, ensuring precision for complex mold designs.
Good Polishability: Supports high-gloss surface finishes for superior molded part quality.
5.Typical Applications
Die Casting Tools: Ideal for aluminum, magnesium, and zinc alloy pressure die casting dies.
Extrusion Dies: Used for aluminum profiles and copper alloy extrusion mandrels and liners.
Hot Forging: Suitable for forging dies, hot nut tools, and punching tools.
Plastic Injection Molds: Often used for high-durability plastic molds requiring wear resistance and high surface finish.
6.Payment:TT,LC at sight or UPAS LC
7.Delivery time:3-10days for ready stock
15-60days for new production products
------------------------------------------------------------------------------------------------------
