1.2080 Tool Steel
Product Overview
1.2080 Tool Steel is a high-carbon, high-chromium alloyed tool steel known for its exceptional resistance to abrasive and adhesive wear. Due to its high chromium content (12%), it offers superior edge-holding properties and significant compressive strength, making it the"workhorse"for high-volume cold work applications.
Compared to its"sibling"1.2379 (D2), 1.2080 Tool Steel provides even higher wear resistance, although with slightly lower toughness, making it ideal for tasks where surface endurance is the top priority.
1.1.2080 Tool Steel Typical Chemical composition:
C=2.0-2.3,Si≤0.40,Mn≤0.40,Cr=11.5-13.0,P≤0.0.03,S≤0.005,Co≤1.0
2. Delivery condition:
Hot rolled or forged,Black/ Grinding / Polishing / Milling / Machined Surface
Annealing(hardness max230HB)
EAF or ESR material
SEP 1921-84 Gr3, Class D/d
3. Size specification
1.2080 Tool Steel Flat bar size dimension
| Thickness range(mm) | Width range(mm) | Length range(mm) |
| Rolled Flat bar | 10-70 | 310-910 | 3000-5800 |
| Forged Flat bar | 75-500 | 310-910 | 3000-5800 |

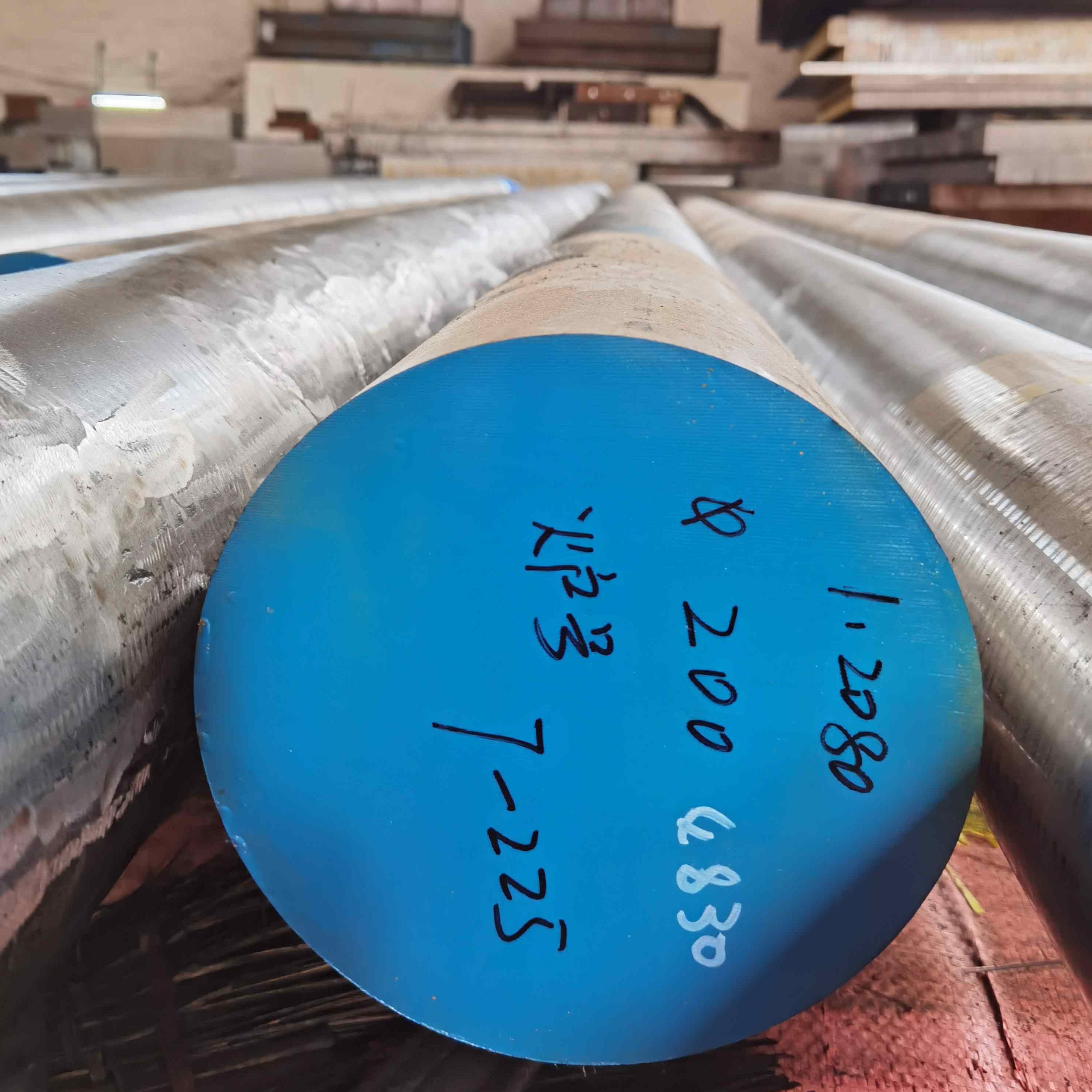

1.2080 Tool Steel Round bar size dimension:
| Diameter range(mm) | Length range(mm) |
| Rolled Round bar | 10-60 | 3000-5800 |
| Forged Round bar | 65-500 | 3000-5800 |
4.1.2080 Tool Steel Process:EF + LF + VD
5. Technical Data: According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
6. Delivery time:
---10-15 days for ready stock
---30-60 days for new production products
7.1.2080 Tool Steel Material character
---High preferably quenching
---Good wearable
10.DIN1.2080 Tool Steel Typical Application:
1.2080 Tool Steel is the preferred choice for tools requiring maximum longevity in:
Blanking & Punching Dies: Especially for high-strength or abrasive sheet metals.
Shear Blades: For cutting thin materials where edge retention is vital.
Thread Rolling Dies: Ensuring thread precision over thousands of cycles.
Drawing & Forming Tools: Reducing friction and preventing galling.
Crusher Rolls & Liners: Used in brick and tile manufacturing.
------------------------------------------------------------------------------------------------------------------------
