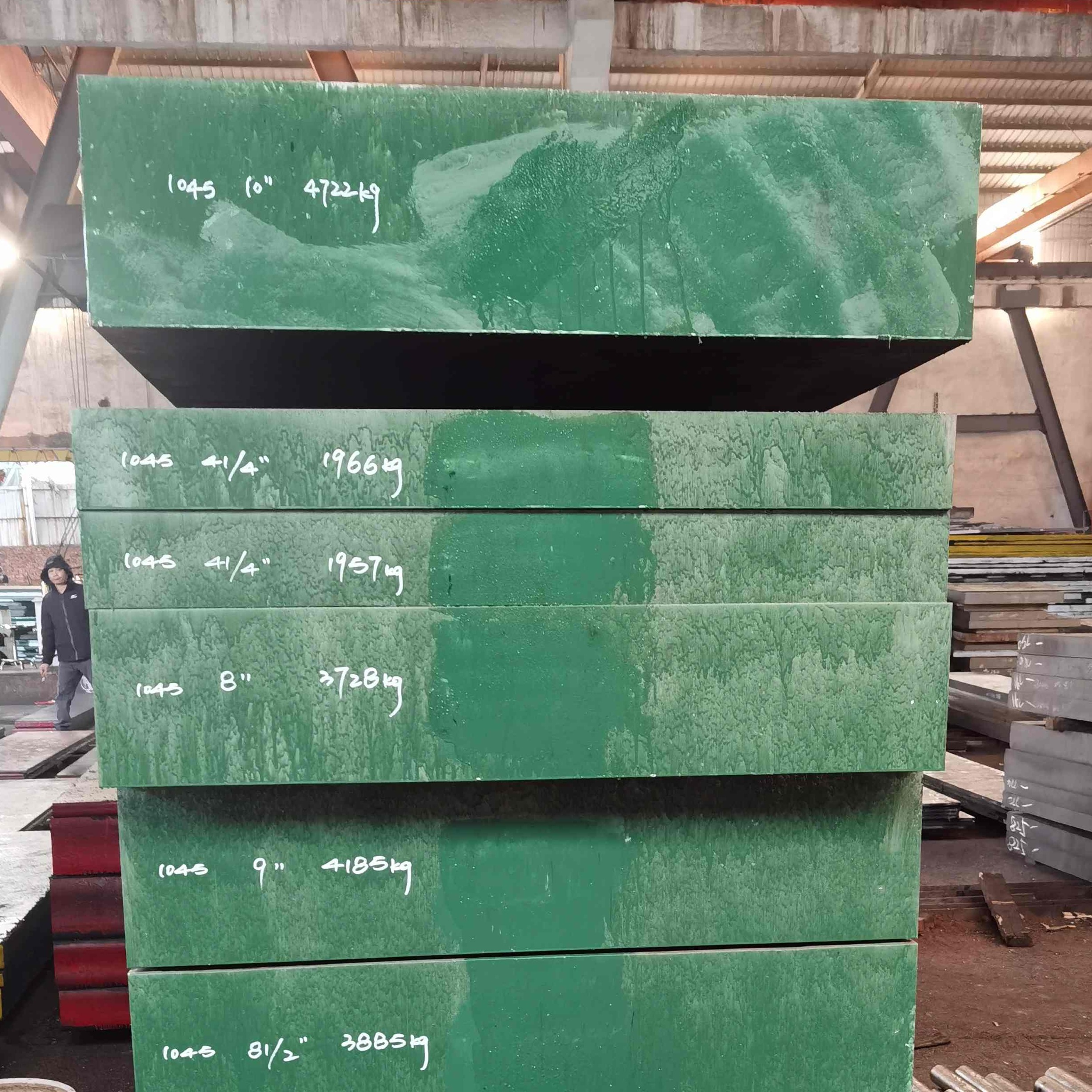

SAE1045 Hot Rolled Steel Plates
1. SAE1045 Hot Rolled Steel Plates Chemical Composition:
C=0.42~0.50, Si=0.17~0.37, Mn=0.60~0.9,P≤0.035,S≤0.035,Cr≤0.25,Ni≤0.25
2. SAE1045 Hot Rolled Steel Plates Delivery condition:
Hot rolled,black/Milled surface
Annealing hardness: HBS<=229
as original edge/2 sides cut by bandsaw/4 sides cut by bandsaw
3. SAE1045 Hot Rolled Steel Plates Size specification
Big plate
Thickness: 10~350MM
Width: 1800~2500MM
Length: 3000~5800MM
Round bar size of diameter: 60~300MM
We can cut the width per your request by bandsaw
Original Mill origin:Songshan(韶钢)，Ansteel(鞍钢)，Shasteel(沙钢)，Baosteel(宝钢)
4. Technical Data: According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
5. Inspection: Ultrasonic test according to SEP 1921-84 Gr3, Class C/c or D/d
6. Payment terms:TT or LC at sight or UPAS LC
7. Delivery time: 3-15 days after advanced payment or confirm the LC (ready stock)
20-60days after advanced payment or confirm the LC (New production order)
8. SAE1045 Hot Rolled Steel Plates character:
(1)High quality carbon structural steel
(2)Good cutting characteristics
9. SAE1045 Hot Rolled Steel Plates Application:
It can be used for injection plastic mould, mould frame and some middle-range machine
-----------------------------------------------------------------------------------------------------------------------
YUFANG Main steel List:
Plastic Mould steel: P20/1.2311, 1.2312, 1.2738/718H/P20+NI, 1.2083/4CR13/SUS420, NAK80, P40
Hot work tool steel: 1.2344, SKD61, H13, H11, FDAC, 8407
Cold work tool steel: SKD11, D3, 1.2080, 1.2379, CR12MOV, O1, D2
Alloy steel : 4140/42CrMO/SCM440/1.7225, 20CR, 40Cr, 35CrMo,SCM420
Carbon steel : S45C/SAE1045/C45, S50C/SAE1045/C50, S55C+CR
---------------------------------------------------------------------------------------------------------------------------
