CK45 steel plate

CK45 steel plate

Product Overview

CK45 is a high-quality medium-carbon steel grade, offering a balanced combination of strength, toughness, and wear resistance. As one of the most versatile engineering steels, C45 is widely used for components requiring higher strength than low-carbon steels while remaining cost-effective for mass production. It is supplied in a variety of states, including hot-rolled, normalized, or quenched and tempered to meet your specific project requirements.

1. CK45 steel plate Chemical Composition:
  C=0.42~0.50, Si=0.17~0.37, Mn=0.60~0.9,P≤0.035,S≤0.035,Cr≤0.25,Ni≤0.25

2. CK45 steel plate Delivery condition:
    Hot rolled,black/Milled surface
    Annealing hardness: HBS<=229
    as original edge/2 sides cut by bandsaw/4 sides cut by bandsaw

3. CK45 Steel plate Size specification

  We can cut the width per your request by bandsaw
  Original Mill origin:Baowu shaogang(宝武韶钢)，Ansteel(鞍钢)，Shasteel(沙钢)，Baosteel(宝钢)

4. Technical Data: According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing


5. Inspection: Ultrasonic test according to SEP 1921-84 Gr3, Class C/c or D/d


6. Payment terms:TT or LC at sight or UPAS LC


7. Delivery time: 3-15 days after advanced payment or confirm the LC (ready stock)
                            20-60days after advanced payment or confirm the LC (New production order)


8. CK45 steel plate Key Features:
   Cost-Efficient: An economical choice for non-critical structural and mechanical applications.

   Balanced Properties: Excellent compromise between strength and ductility.

   Versatile Processing: Highly responsive to standard machining, welding, and heat treatment processes.

   Reliable Consistency: Offers uniform mechanical properties for stable performance during manufacturing.

   Wide Range of Uses: Perfect for parts that do not require complex alloy characteristics.

9. CK45 steel plate Application:
     It can be used for injection plastic mould, mould frame and some middle-range machine
-----------------------------------------------------------------------------------------------------------------------

YUFANG Main steel List:

Plastic Mould steel: P20/1.2311, 1.2312, 1.2738/718H/P20+NI, NAK80, P40
Hot work tool steel: 1.2344, SKD61, H13, H11, FDAC, 8407
Cold work tool steel: SKD11, D3, 1.2080, 1.2379, CR12MOV, O1, D2

Stainless Steel:1.2083/4CR13/SUS420,1.2085,1.2316,440C
Alloy steel : 4140/42COMO/SCM440/1.7225, 20CR, 40Cr, 35CrMo,SCM420
Carbon steel : S45C/SAE1045/C45, S50C/SAE1045/C50, S55C+CR
----------------------------------------------------------------------------------------------------------------------------

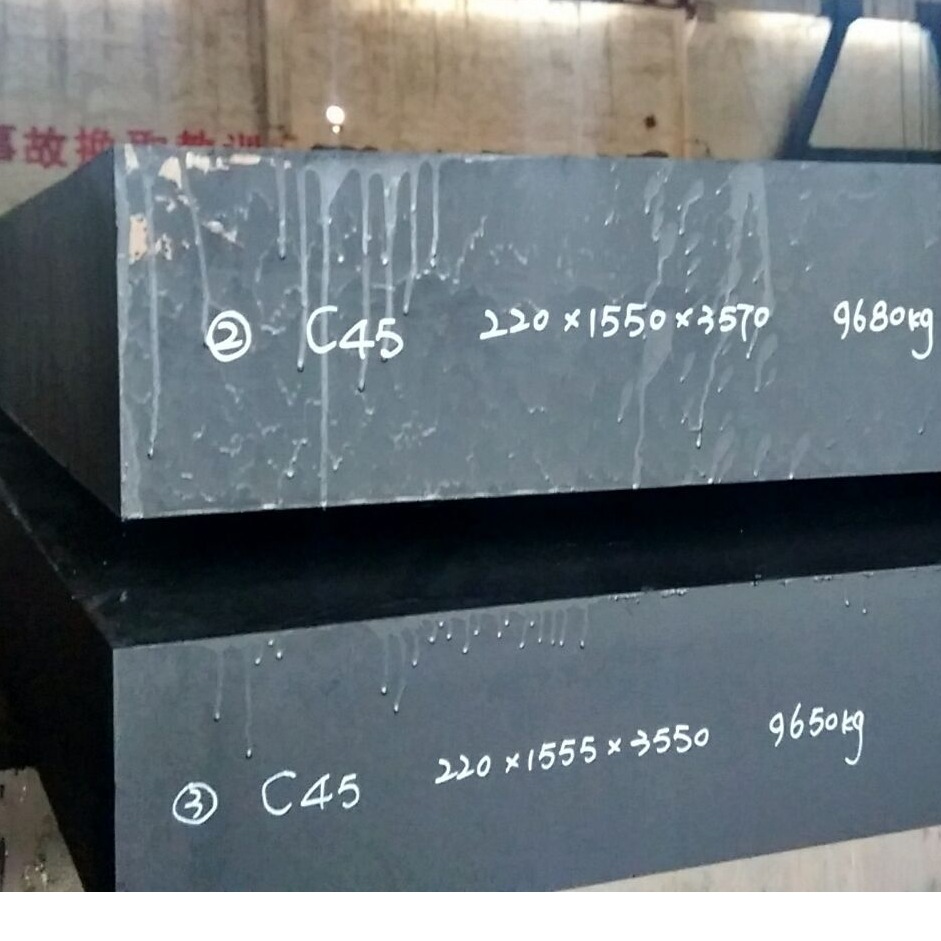

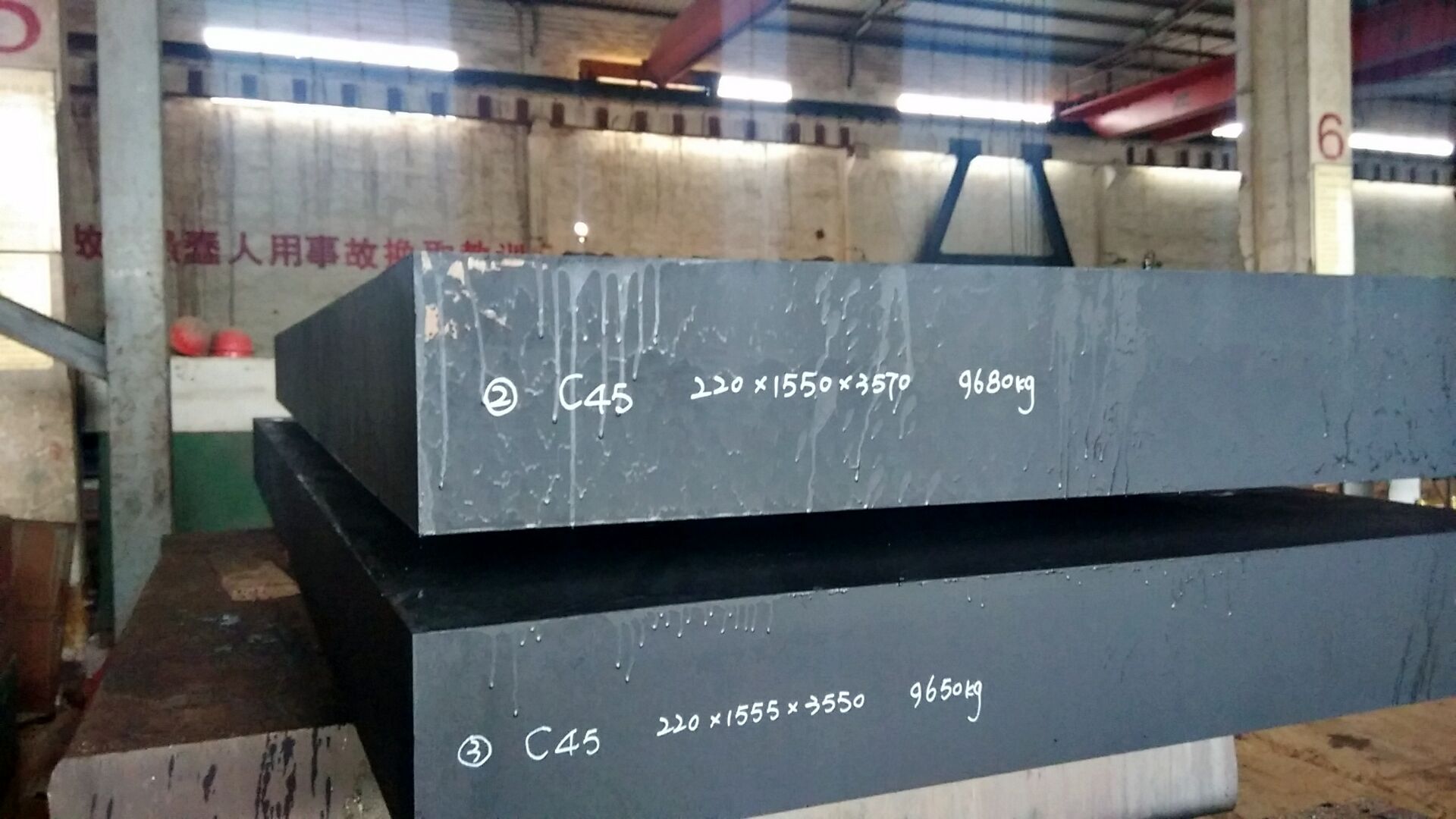

Our Ck45 Steel Plate products Photo
